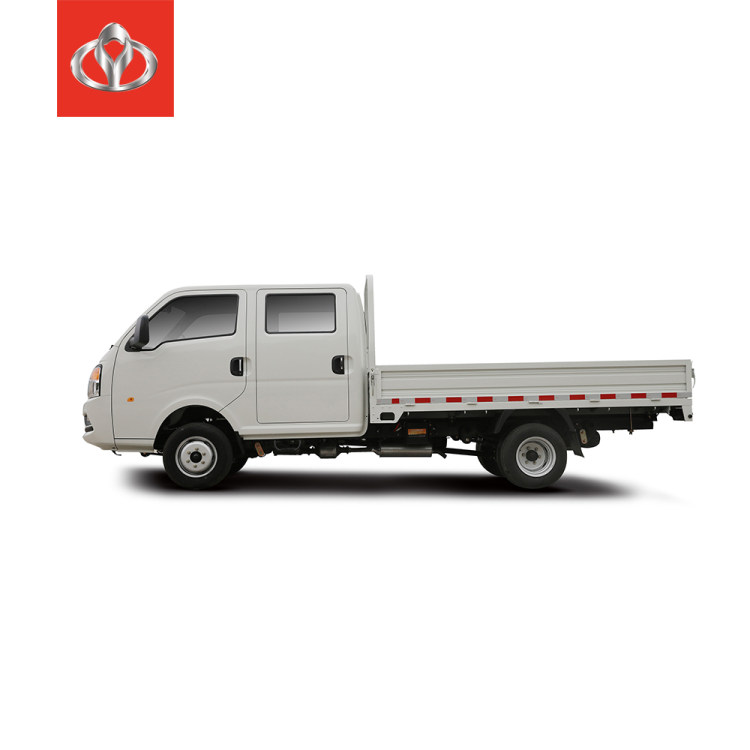

• D5 Series Double Cabin

    share to

    Model SC1040UDD51（Single Cabin） SC1040UDW51（King Cabin） SC1040UFS51（Double Cabin）
    Vehicles Dimension(mm) 5440*1780*2110 5440*1780*2110 5790*1780*2125
    Cargo dimension(internal mm)★ 3400*1680*380 3050*1680*380 2850*1680*380
    Wheel base(mm) 3000 3000 3250
    Gross vehicles weight(kg) 4010 4035 4370
    Curb weight(kg) 1885 1910 2050
    Max. payload(kg) 1995 1995 1995
    Seating capacity 2 2 5
    Engine Model★ D19TCIE3（EURO Ⅴ）
    Fuel category Diesel
    Rated power (KW) 85 85 85
    Displacement(CC) 1910 1910 1910
    Maximum Torque（N.m） 285 285 285
    Maximum speed(km/h) 100 100 100
    Brake system Front disc/rear drum
    Tire★ 185R14LT , Double rear tire 185R14LT , Double rear tire 185R14LT , Double rear tire
    Power steering  ● ● ●
    ABS+EBD ● ● ●
    Laminated glass ● ● ●
    heater ● ● ●
    Steering wheel lock ● ● ●
    Adjustable steering wheel ● ● ●
    Sun Visor ● ● ●
    Electric headlamp height adjustment ● ● ●
    Double speaker ● ● ●
    Double  handle ● ● ●
     MP3+ Radio ● ● ●
    Remote key + central  locking ● ● ●
     front power window  ● ● ●
    MP5+backup camera+GPS ○ ○ ○
    A/C ○ ○ ○
    truck with box ○ ○ ○
    refrigerated truck ○ ○ ○
    Optional Cargo dimension(internal mm) 3200*1680*380
    3750*1750*380    		 3120*1680*360
    3400*1750*380    		 ——
    Optional Wheel base(mm) 2800/3250 2800/3250 ——
    Optional Tire 185R15LT , Double rear tire 185R15LT , Double rear tire ——
    Optional Engine Model LJ4A18Q6（1798CC、EURO VI） LJ4A18Q6（1798CC、EURO VI）
    JE493Q1（2771CC、、EURO I）    		 LJ4A18Q6（1798CC、EURO VI）
